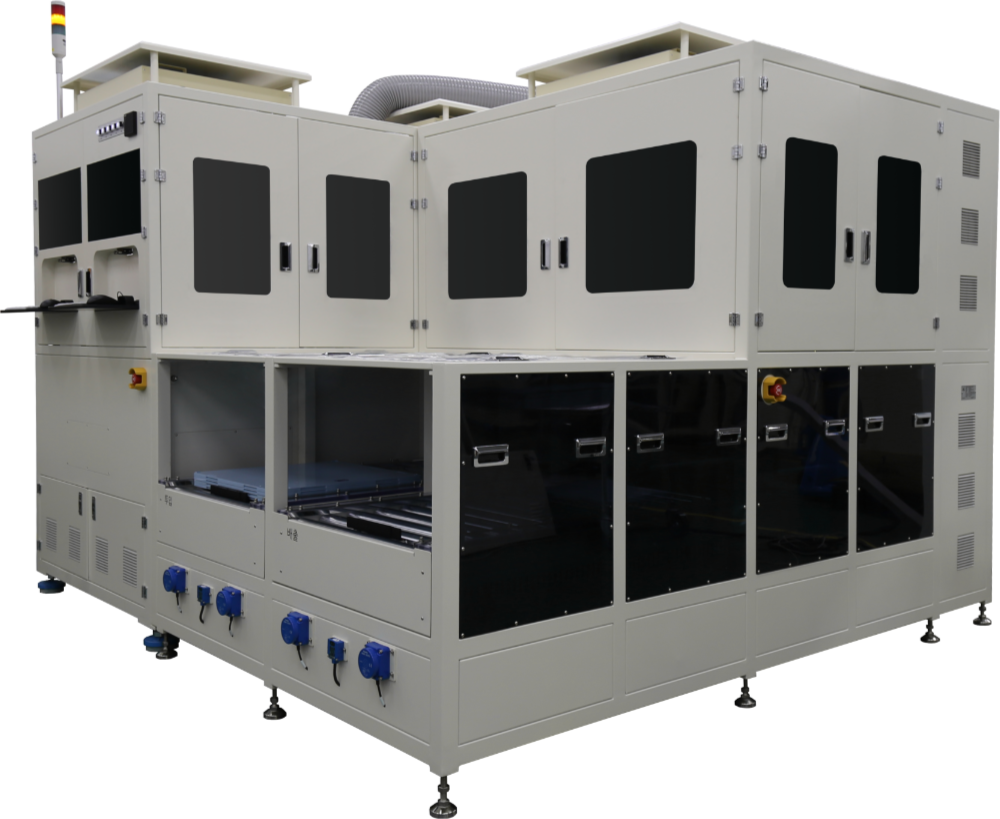

Color Panel AVI
P-400CA
Dual-side auto flip panel-in-tray configuration for post-PSR processes.
- Cu exposure ≥ 15 um
- Color: 2.5 um/pixel
- Multi-angle white LED
- Metal / SR / bump, 240 sec/panel
- System size: 2,956(W) x 2,725(D) x 2,200(H) mm
Featured modelProduct inquiry
High-resolution color, UV, IR, and dent inspectionPanel AVI
Acts as the gatekeeper at the panel-level mid-process stage.
Panel AVI expandable from color inspection to specialty optics
Built on color inspection with extensions to UV, IR, and other specialty wavelengths—applicable across PSR, ABF, VHP, CZ, and other process stages in the Panel AVI product line.
Product highlights
Resolution range
2-5 Um/Pixel
Multi-wavelength support: Color, UV, IR
Applicable processes
ABF / PSR / CZ / VHP
Automation support for FOUP, Tray, Box
Panel AVI product specifications
UV + Color Panel AVI
P-400HUV
Hybrid optics for post-CZ processes to separate DFR residue and fluorescence-based defects.
- Dry film residue ≥ 10 um
- UV and multi-angle white LED
- Normal: 110 sec/panel, HR: 520 sec/panel
- UV and Color: 2.5-5 um/pixel
- All inside panel (unit + dummy area)
- System size: 3,822(W) x 2,632(D) x 2,237(H) mm
IR + Color Panel AVI
P-400CIRA
IR hybrid optics for post-PSR processes covering short under SR, open / short, and Cu exposure.
- Cu exposure, open/short ≥ 15 um
- IR and multi-angle white LED
- Normal: 120 sec/panel, HR: 250 sec/panel
- IR and Color: 2.5-5 um/pixel
- Metal / SR
- System size: 3,822(W) x 2,632(D) x 2,237(H) mm
Manual Type
P-400C
One-side manual panel inspection configuration for post-PSR processes.
- Cu exposure ≥ 15 um
- Multi-angle white LED
- Normal: 60 sec/side, HR: 85 sec/side
- Color: 2.5, 3 um/pixel
- Metal / SR / bump
- System size: 1,280(W) x 2,635(D) x 1,900(H) mm
